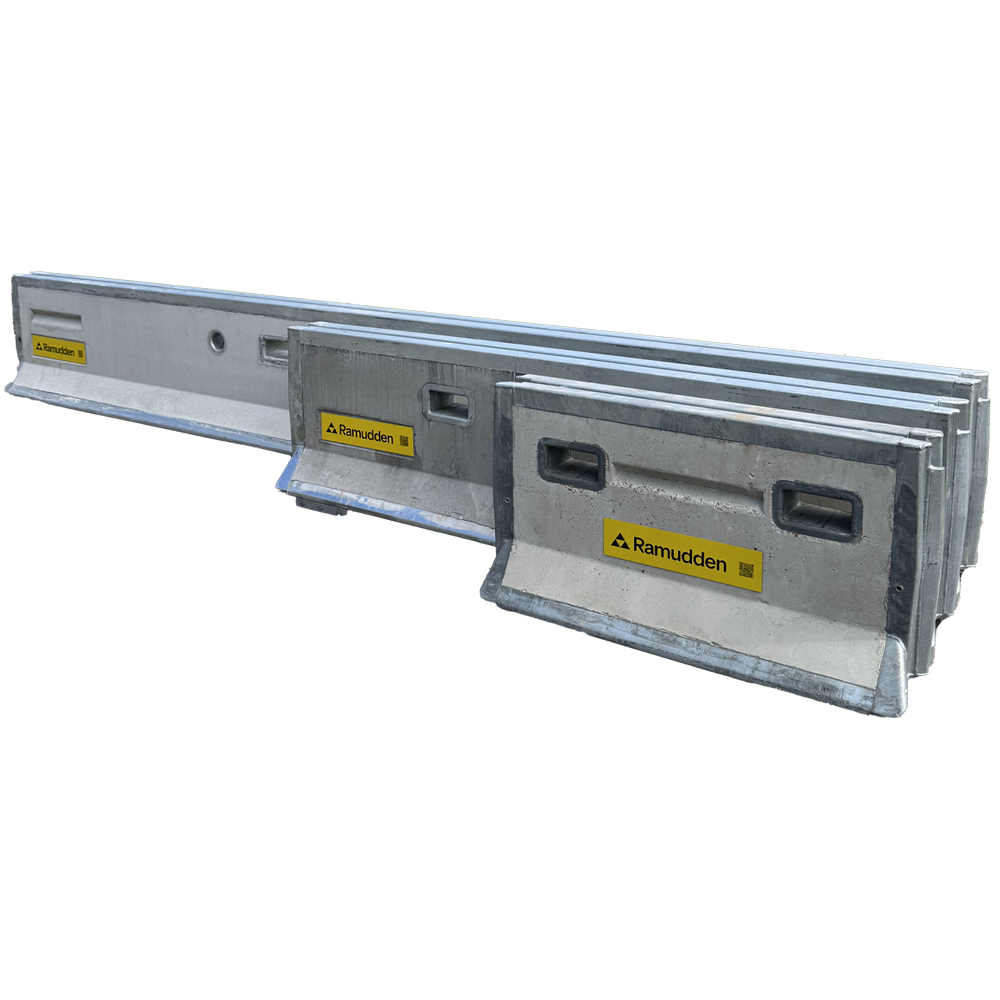

Svea Barrier System
Svea is a fully modular, freestanding barrier system that sets a new standard for safety and performance in temporary work zones. With fast installation, exceptional flexibility, and proven performance, Svea adapts seamlessly to project requirements, providing superior protection and maximum flexibility.
Certified for Safety
CE-certified and crash-tested in accordance with AASHTO MASH TL-3 and EN 1317-2 (capacity classes T2, T3, N1 and N2), as well as ISO 22343 for hostile vehicle mitigation.
Exceptional Flexibility

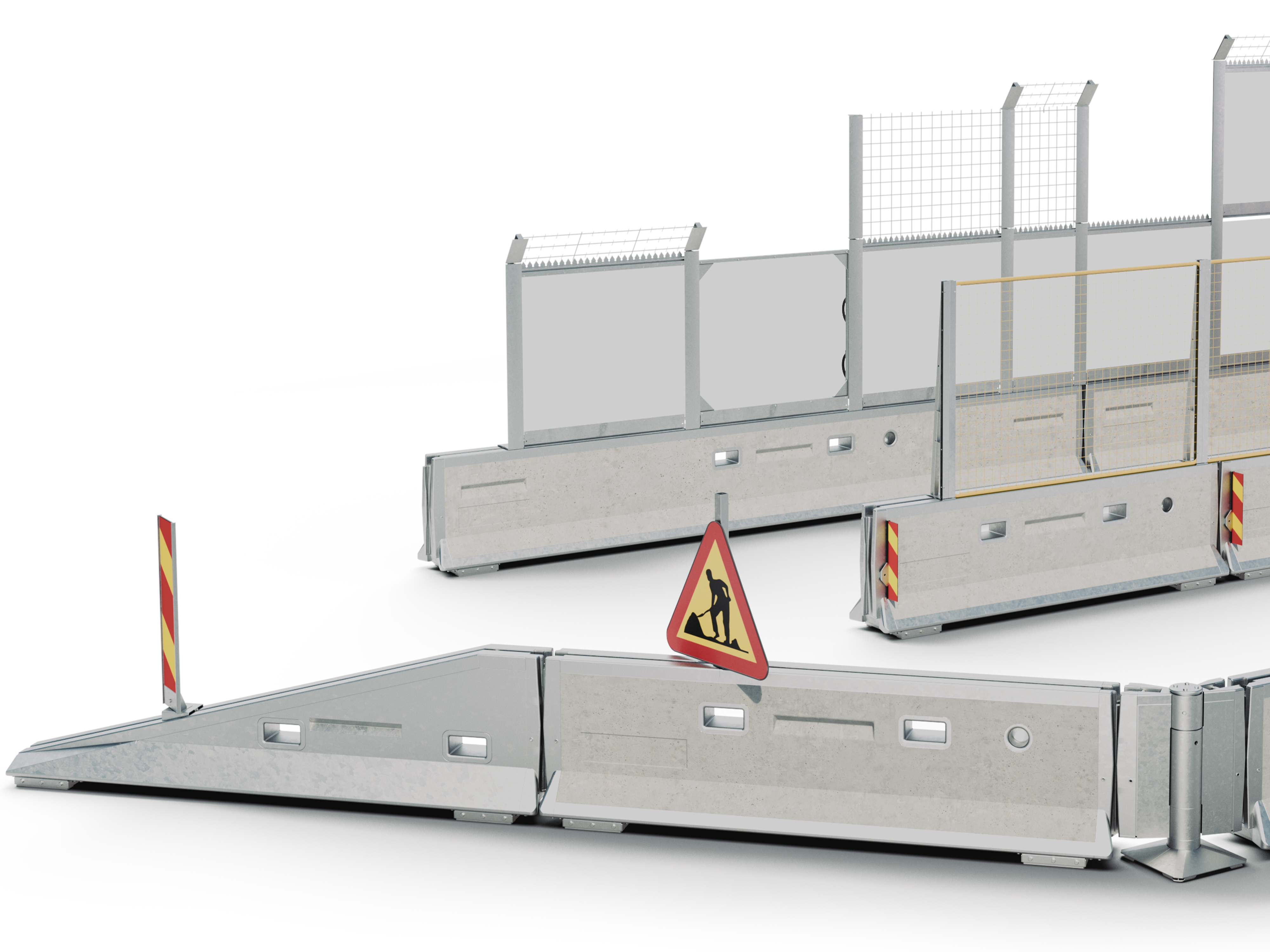

Freestanding design with adaptable angles of up to 3° and removable sections for emergency or temporary access.
Fast Installation
Patented connection system enables one-person, crane-assisted installation in as little as 10 minutes.
Built to Last
Hot-dip galvanized steel frame (ISO 1461) protects the concrete barrier, ensuring a long service life and minimal maintenance.
Accessory Ready

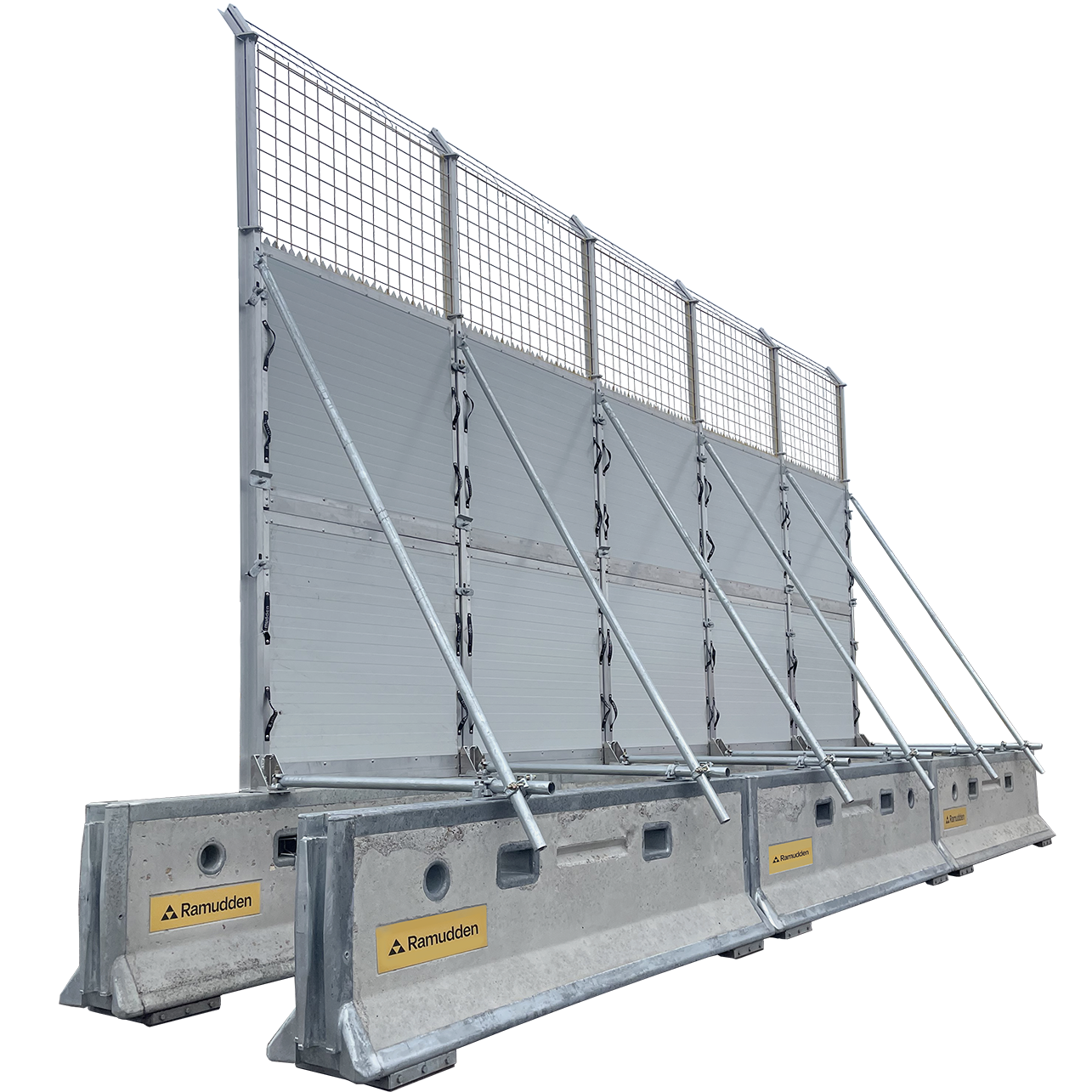

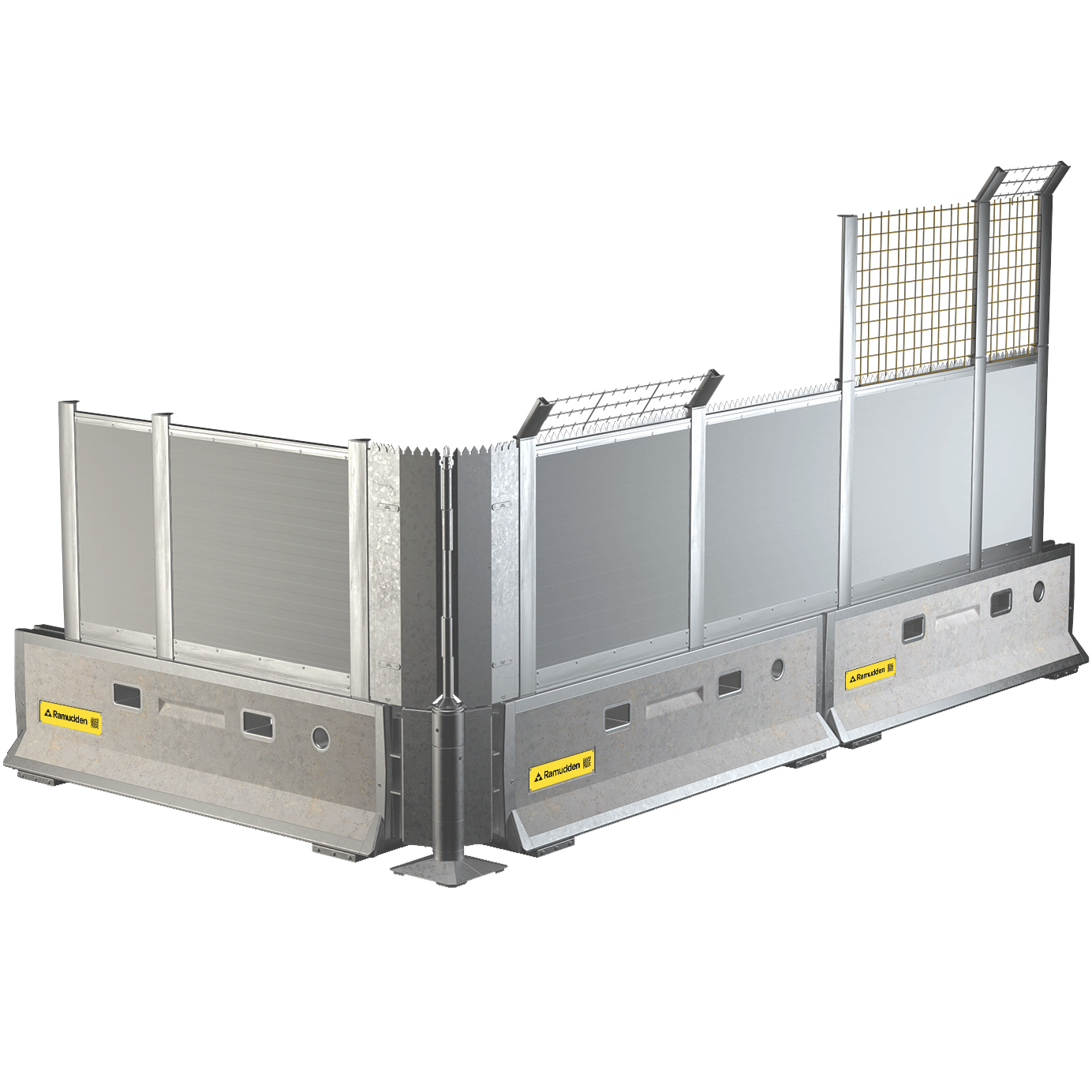

T-track enables quick mounting of accessories. Crash-tested Sound Panel reduces noise by up to 24 dB.
949100
Technical Specification
| T2 | W2 / 0,8 m | A | 22,8 |
| T3 | W3 / 1,0 m | A | 28,5 |
| N2 | W5 / 1,7 m | B | 34,2 |
Technical Data

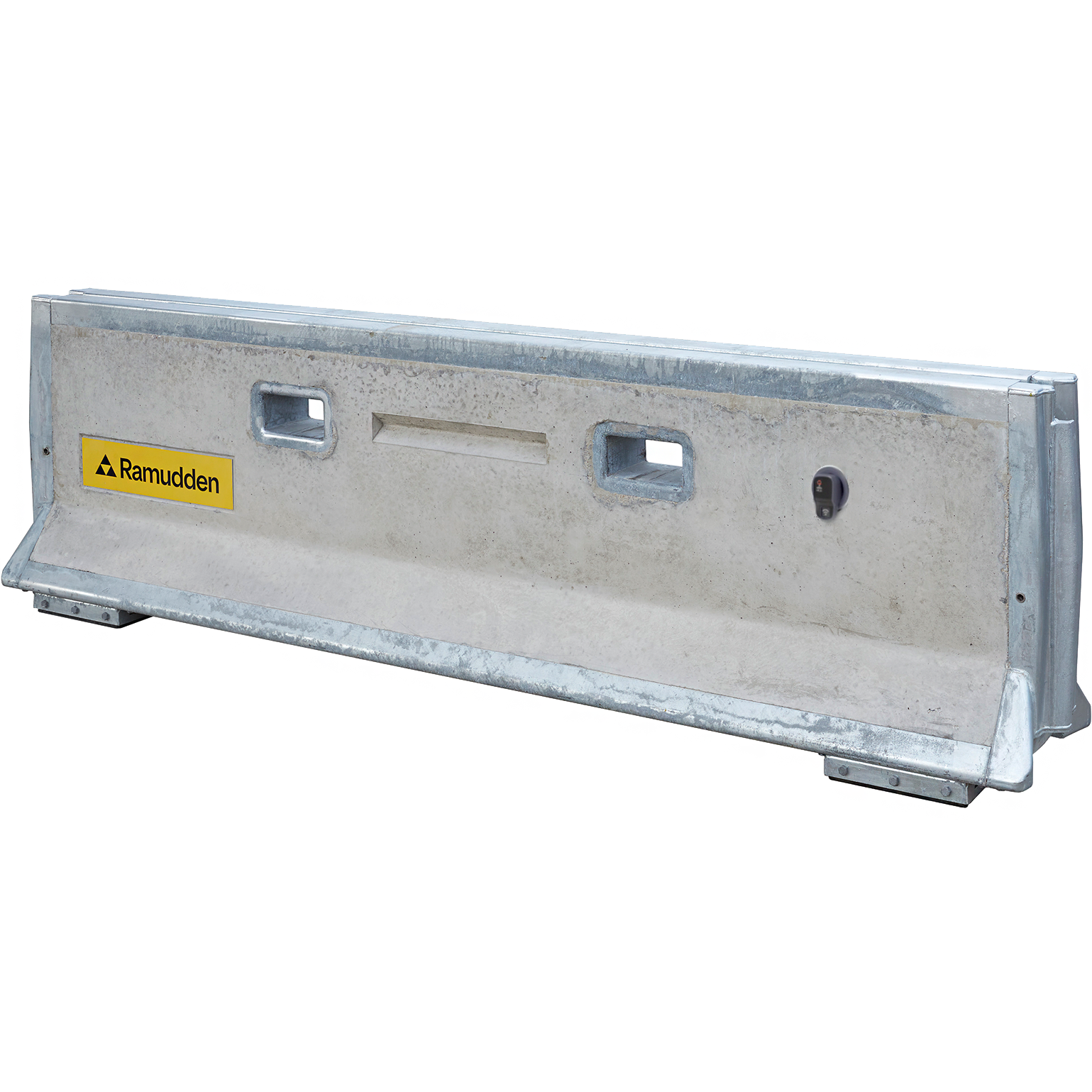

- Length (mm/in)
- 2850 mm
- Width (mm/in)
- 450 mm
- Height (mm/in)
- 824 mm
- Total weight (kg/lb)
- 1280 kg
- Weight per meter (kg/lb)
- 449 kg
